UnionwellAutomotive Plunger Switches - IP67 Sealed Vehicle Limit Switches
What is an Automotive Plunger Switch?
What is an Automotive Plunger Switch?
An automotive plunger switch is a type of mechanical limit switch specifically designed for vehicle applications. It features a spring-loaded plunger that activates internal electrical contacts when pressed, providing precise position detection for various automotive systems.
Working Principle
When an external object (such as a door, hood, or pedal) presses against the plunger, the force overcomes the spring tension, causing the plunger to move inward. This precise mechanical movement internally triggers a change in the state of electrical contacts, sending a signal to the vehicle's control system.
Key Components
- ● Plunger: Spring-loaded pin that detects physical contact
- ● Housing: Sealed enclosure providing IP67 protection
- ● Electrical Contacts: Silver alloy contacts for reliable signal transmission
- ● Spring Mechanism: Returns plunger to original position after actuation
- ● Terminal Connections: PCB pins, solder terminals, or wire leads
Why Plunger Type for Automotive Applications?
Plunger switches are preferred in automotive applications due to their simplicity, reliability, and ability to provide absolute position detection through direct physical contact. Unlike non-contact sensors, plunger switches offer tactile confirmation and are immune to electromagnetic interference, making them ideal for safety-critical automotive systems.
Automotive Plunger Switch
Technical Specifications
| Parameter | Specification | Significance |
|---|---|---|
| IP Rating | IP67 | Dust-tight and water-resistant for harsh automotive environments |
| Operating Voltage | 12V DC / 24V DC | Standard automotive voltage systems |
| Contact Configuration | SPST-NO / SPST-NC | Circuit design flexibility for different applications |
| Operating Force | 50gf - 400gf | Trigger sensitivity adjustable to application requirements |
| Mechanical Life | >1,000,000 cycles | Durability in high-cycle applications like door detection |
| Electrical Life | >100,000 cycles | Reliable switching under load conditions |
| Operating Temperature | -40°C to +85°C | Wide temperature range for automotive applications |
| Contact Resistance | <10mΩ | Low resistance for signal integrity in safety circuits |
Unionwell Automotive Plunger Switches
More models and customization options are available on the Unionwell product page, please click here to view.
Automotive Application Scenarios
-
Door Position Detection
-
Monitoring hood and trunk position for security alarms, remote start systems, and dashboard warning indicators. IP67-rated switches withstand engine compartment heat and vibration.
-
Seat Adjustment Systems
-
Critical safety interlocks in transmission shift mechanisms, preventing gear engagement unless brake pedal is depressed. Fail-safe design with redundant contacts.
-
Detecting door open/closed status for interior lighting, door-ajar warnings, security systems, and power lock control. Plunger switches mounted in door jambs provide reliable signal to body control modules.
-
Hood/Trunk Lid Sensing
-
Detecting seat position limits in power seat adjustment mechanisms, preventing over-travel and ensuring passenger safety. High-cycle switches with 1M+ mechanical life.
-
Safety Interlock Systems

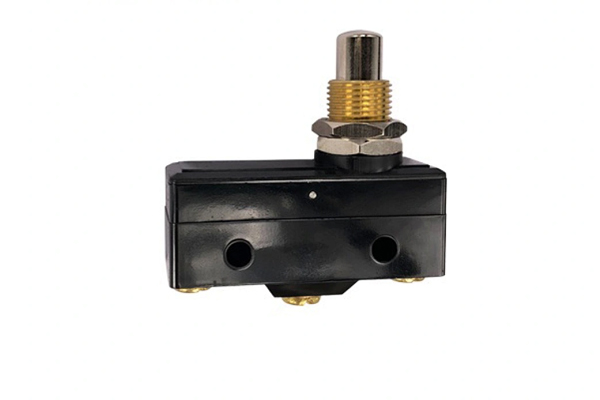

G12 automotive plunger switch
Automotive Plunger Switch
-
Sealed Dual Loop Subminiature Micro Switch - G307A Series PDF
Download -
Sealed Triple Loop Subminiature Micro Switch - G307B Series PDF
Download -
Basic Micro Switch - G5 Series PDF
Download -
Plunger Miniature Micro Switch - G6 Series PDF
Download -
Subminiature Micro Switch - G10A Series PDF
Download -
Waterproof Swing Rotary Switch - G16 Series PDF
Download
G3 automotive plunger switch in automotive electronic parking system
G3 plunger micro switch is designed for automotive electronic parking brake system (EPB) as a key signal input component and is installed in the operating mechanism. When the driver presses the EPB button, the plunger switch quickly recognizes the mechanical action and converts it into a stable electrical signal, which is transmitted to the vehicle electronic control unit (ECU).
G3 plunger micro switch is designed for automotive electronic parking brake system (EPB) as a key signal input component and is installed in the operating mechanism. When the driver presses the EPB button, the plunger switch quickly recognizes the mechanical action and converts it into a stable electrical signal, which is transmitted to the vehicle electronic control unit (ECU).
Step 1: Determine IP Rating Requirements
For interior applications (cabin, trunk): IP65 minimum. For engine compartment or exterior: IP67 required. Consider exposure to water, dust, and cleaning chemicals.
Step 2: Confirm Electrical Parameters
Verify voltage (12V or 24V DC), current rating, and contact configuration (NO/NC). Ensure compatibility with vehicle's body control module or direct circuit.
Step 3: Select Operating Force & Travel
Operating force determines trigger sensitivity. Low force (50-100gf) for delicate applications; high force (300-400gf) for heavy-duty applications. Consider pedal or door return spring force.
Step 6: Verify Mounting Requirements
Threaded body for adjustable mounting depth. Bracket mounting for surface installation. Consider space constraints and accessibility for maintenance.
Step 5: Consider Environmental Factors
Operating temperature range, vibration resistance, and chemical exposure. Engine compartment applications require higher temperature ratings and vibration resistance.
Step 4: Choose Contact Configuration
Normally Open (NO) for most position detection applications. Normally Closed (NC) for fail-safe safety circuits. Changeover (CO) for dual-function applications.
automotive plunger switch technical drawing

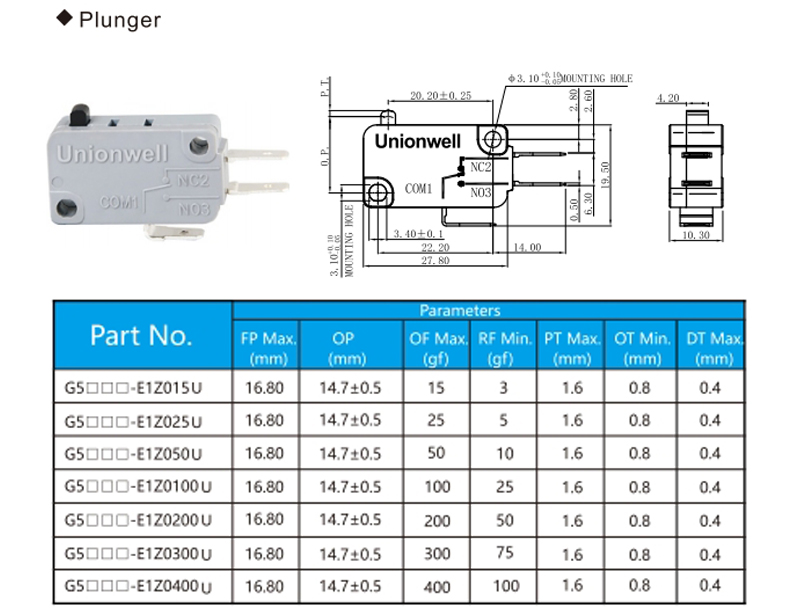

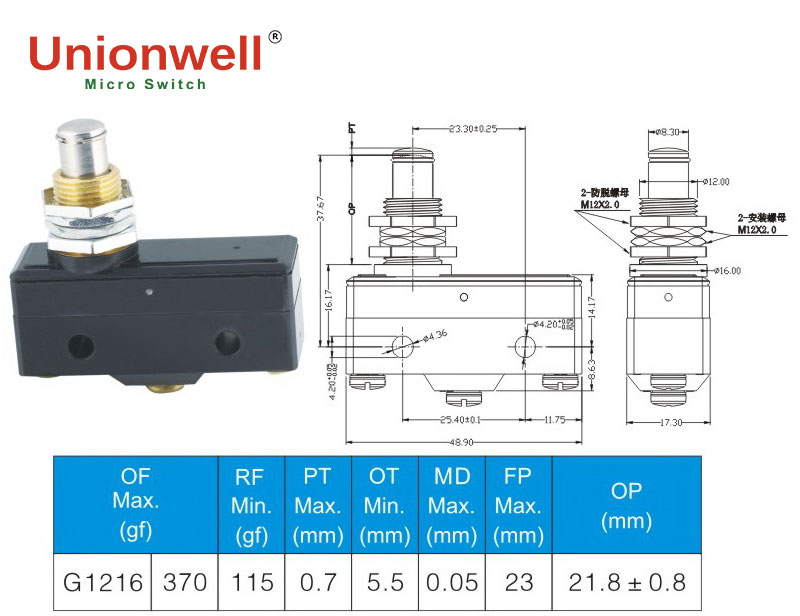

Next to it are two of Unionwell's automotive plunger switch micro switch drawings, the G12 plunger automotive limit switch and the G5 automotive plunger switch. Both are among the automotive micro switches that are commonly purchased by automotive assemblers. The G12 is often used for limit control switches on automotive production lines, while the G5 is often used in automotive internal systems.
If you are interested in these two automotive plunger switches, you can go to Download Data Sheet Of Automotive Plunger Switch to view the corresponding online technical documents. For more automotive micro switch recommendations, please visit the Unionwell automotive micro switch page, or click the button below to consult!
Why Choose Our Waterproof Plunger Switch
-
1
Automotive-grade sealing structure
Unlike common unsealed switches, we use a highly elastic sealing ring + precision push rod labyrinth structure, effectively preventing the intrusion of water, dust, oil, and corrosive media, perfectly meeting IP67 automotive-grade waterproof requirements. -
2
High durability
Unionwell's waterproof plunger switches are specifically tested for harsh operating environments such as salt spray, oil, vibration, mechanical shock, high humidity, and extreme temperatures, ensuring the switch's durability. -
3
Internationally certified
Unionwell waterproof plunger switches are certified by international standards including RoHS, ISO9001, IATF16949, and ENEC. All switches are manufactured under automotive-grade standards, ensuring consistency, reliability, and the quality levels required by global OEM customers. -
4
Born for demanding applications
Whether in automotive sensing devices, power systems, outdoor installations, or industrial automation machinery, Unionwell's Waterproof Plunger Switch maintains stable operation in environments where ordinary microswitches cannot operate.
Application of waterproof Plunger switch
Home Appliances
- ●Ice Maker
- ●Coffee Machine
- ●Vending Machine
- ●Robot Vacuum Cleaner
- ●Dishwasher
Automotive Parts
- ●Car Door
- ●Automotive Door Locks
- ●Car Seat Adjustment Switch
- ●Car Back Door Locks
Customized solutions for automotive micro switches
Unionwell provides customized solutions for automotive micro switches. We have many engineers with more than 30 years of R&D experience and many years of OEM/ODM design and production mode. We can easily solve all your project needs and produce compatible, stable and affordable automotive micro switches for your car.
- Customizable voltage parameters
- Customizable terminal types
- Customizable protection level, IP40/IP67/IP68
- Customizable micro switch lever type , straight lever/roller lever/plunger type
If you are not sure which micro switches to buy, you can describe your needs and application scenarios, and our sales staff will provide you with the most suitable suggestions and solutions.
Customized Car Door Switches
FAQ
What is the difference between automotive plunger switch and lever switch?
Plunger switches provide direct linear actuation through a spring-loaded pin, offering absolute position detection with tactile feedback. Lever switches use a pivoting arm for indirect actuation, suitable for cam-operated applications. Plunger switches are preferred for door/hood detection; lever switches are better for rotary motion detection.
What IP rating is required for automotive applications?
IP65 minimum for interior cabin applications (door jamb, seat adjustment). IP67 required for engine compartment or exterior applications (hood sensing, trunk detection). Consider exposure to water jets, dust, and cleaning chemicals when selecting IP rating.
How to select the right operating force for vehicle applications?
Consider the actuation source force: door return springs typically require 100-200gf; pedal return springs may require 200-400gf. Too low operating force may cause false triggering from vibration; too high force may prevent full actuation. Test samples in actual application conditions.
What certifications do automotive plunger switches need?
IATF16949 for automotive quality management system. ISO9001 for general quality management. UL/cUL for North American market. ENEC for European market. Some OEMs may require additional specific certifications or testing.
What is the typical lifespan of automotive plunger switches?
Mechanical lifespan exceeds 1,000,000 cycles for standard automotive switches. Electrical lifespan exceeds 100,000 cycles at rated load. Door detection applications with 20-30 cycles/day will last 100+ years mechanically. High-cycle applications like seat adjustment may require special high-life versions.
