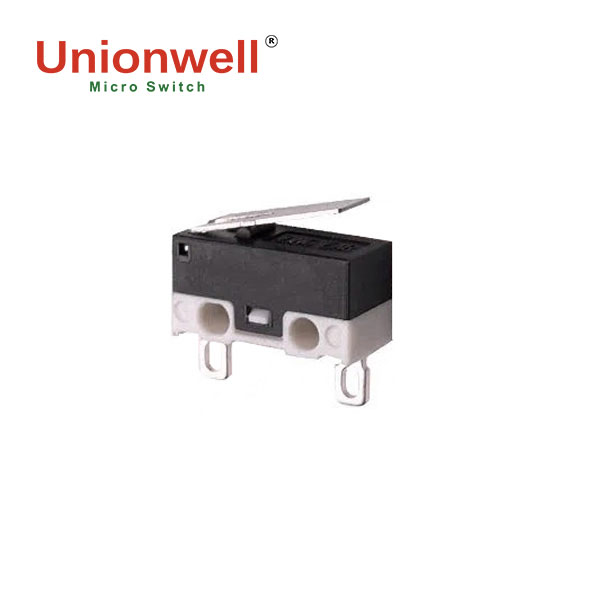

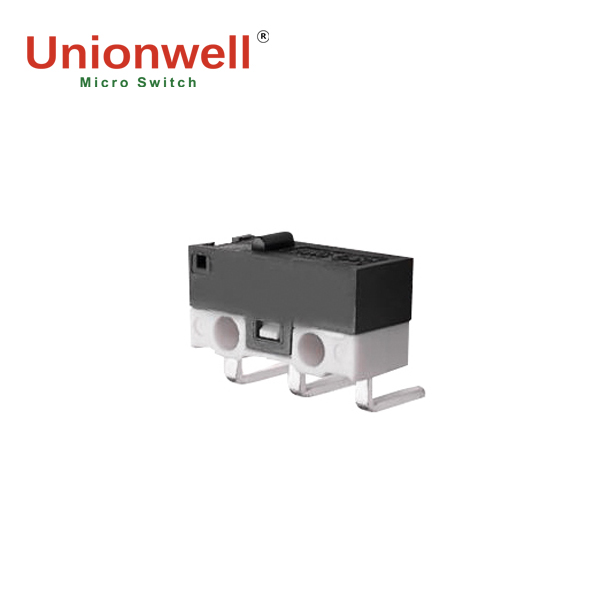

Computer Mouse Micro Switch G10A

Unionwell mouse micro switch is an ultra-small micro switch. With its small size, only 0.5g (straight PCB type without rod), sensitive response, and low signal transmission delay, it is widely used in computer mouse micro switches.

A good switch is inseparable from a professional micro switch manufacturer. We can provide free samples and low quotations. Welcome to learn more about Unionwell's new products.

  • Contact Resistance (Initial Value) 100mΩ Max.(Depends on P/N)
  • Insulation Resistance (at 500 VDC) 100MΩ Min
  • Operating Temperature -40℃~+85℃
  • Operating Humidity 85%RH Max.
Get Free Sample
product details
product description

Features

If you want to find a suitable computer mouse micro switch for your mouse, then Unionwell's G10 subminiature micro switch is your best choice. With the following outstanding features, it has been ordered in large quantities by many gaming mouse manufacturers.

◆ Small size, suitable for small mice
◆ Long life, high reliability, up to 100,000 clicks
◆ Multiple wiring terminals, multiple terminal types are available
◆ Multiple joysticks are available, with multiple types of joysticks available to meet different needs
◆ There are multiple different voltage data available

In addition, Unionwell's mechanical keyboard switches are also popular with many e-sports equipment manufacturers, especially Unionwell's new inductive keyboard switch, which can set the sensitivity of each key for you. Come and get a free sample test.
Subminiature Micro Switch G10hlz

description2

Parameters

  Rating P1 ENEC/CQC: 0.1A 48VDC/125VAC
UL/cUL: 0.1A 48VDC/125VAC
3 ENEC/CQC:1A/3A 125VAC
UL/cUL:1A/3A 125VAC
  Operating Frequency Electrical 10~30 cycles/min
Mechanical 120 cycles/min
  Contact Resistance (Initial Value) 100mΩ Max.(Depends on P/N)
  Insulation Resistance (at 500 VDC) 100MΩ Min
  Dielectric Strength Between terminals 600VAC 50~60Hzfor 1 Min.
Between terminals
and housing		 600VAC 50~60Hzfor 1 Min.
  Operating Temperature -40℃~+85℃
  Operating Humidity 85%RH Max.
  Service Life Electrical 10,000/50,000 cycles (Depends on P/N)
Mechanical 1.000,000 cycles
  Unit Net Weight About 0.5g (Straight PCB type without lever)

description2

Application

The precise click of the mouse is inseparable from the accurate control of the micro switch. Generally, there are 3 mouse micro switches in the common scroll wheel mouse, which are welded on the PCB board. The left one controls the left click, the right one controls the right click, and the middle one controls the mouse wheel when pressed.
In addition, Unionwell micro switches are widely used in the field of consumer electronics, such as mechanical keyboard switches, electric toys, electric toothbrushes, game console control joysticks, etc. If you are looking for micro switches for electronics, you can contact us to get a free catalog.

description2

Dimensions

Subminiature Micro Switch G10 G10P1-150Q16A-T053U (2)q18

G10P1-150Q16A-T053U

Subminiature Micro Switch G10 G10P1-150R10AU (1)gkm

description2

Who is Unionwell

Micro Switches factoryr86

Huizhou Unionwell Sensing & Control Electronics Co., Ltd. is a electronics micro switch manufacturer, specializing in sensing and control core components. Established as an SRDI (Specialized, Refined, Differential, Innovation) "High-New Technology" enterprise, Unionwell is dedicated to research, production, and sales of a wide range of high-quality electronic components.Some of the key products offered by the company include:.Micro Switches,Air Pressure Switches,Mechanical Keyboard Switches,Door Switches ect.Unionwell has a strong global presence, with sales branches and distribution networks spanning across North America, Europe, Asia, the Middle East, and South America.
