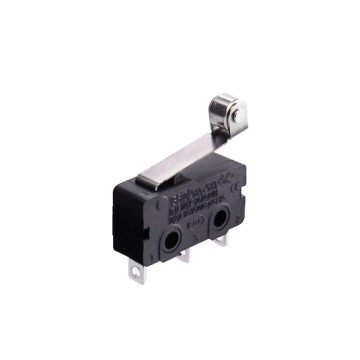

Customized Designs Miniature Micro Switch G6
Features
description2
Parameters
| Rating | P1 | ENEC/CQC:0.1A 125/250VAC 0.1A 48VDC 5E4 25T125 UL:0.1A125/250VAC 0.1A 48VDC Gold Plated Contact Optional |
||
| 05 | ENEC/CQC:5(3)A 125/250VAC 5A 125/250VAC 5A 30VDC 25T120 μ 5E4 UL:5A 125/250VAC 1/8HP 125/250VAC 5A 30VDC |
|||
| 051/052 | ENEC/CQC:5A 125/250VAC 25T120 μ 5E4 UL:5A125/250VAC 1/8HP 125/250VAC |
|||
| 10/101 | ENEC/CQC:10(2)A 125/250VAC 25T 120 μ 5E4 UL:10.1A 125/250VAC 1/4HP 125/250VAC 10A 30VDC Note:Only with “OF" over “250gf" |
|||
| 12 | ENEC/CQC:12(6)A125/250VAC 40T125 μ 1E4 UL:12A125/250VAC Note:Only with 350gf OF |
|||
| Operating Frequency | Electrical | 10~30 cycles/min | ||
| Mechanical | 120 cycles/min | |||
| Contact Resistance (Initiative) | 100mΩ Max. | |||
| lnsulation Resistance (at 500VDC) | 100MΩ Min. | |||
| Dlelectric Strength | Between Terminals | 1,000VAC 50~60Hz for 1 Min. | ||
| Between Terminals and Housing |
1,500VAC 50~60Hz for 1 Min. | |||
| Operating Temperature | -25℃~+125℃ | |||
| Operating Humidity | 85%RH Max. | |||
| Service Life | Electrical | 10,000~50,000 cycles (Depend on P/N) | ||
| Mechanical | 1,000,000 cycles | |||
description2
Application
Customized Designs Miniature Micro Switch G6 is widely utilized in phone, air-conditioner, computer, and humidifier applications. In phones, it facilitates functions like power buttons, volume controls, and keyboard switches, ensuring smooth operation. In air-conditioners, the G6 switch regulates temperature settings, fan speeds, and mode selections, enhancing comfort and efficiency. In computers, it enables functions such as power switches, reset buttons, and keyboard switches, ensuring seamless operation. In humidifiers, the G6 switch controls power, mist settings, and humidity levels, providing optimal performance.
description2
Dimensions
G605-050E00B-T165U
G605-150S02C-18-T058U
description2
Who is Unionwell
Huizhou Unionwell Sensing & Control Electronics Co., Ltd. is a mini micro switch manufacturer, specializing in sensing and control core components. Established as an SRDI (Specialized, Refined, Differential, Innovation) "High-New Technology" enterprise, Unionwell is dedicated to research, production, and sales of a wide range of high-quality electronic components.Some of the key products offered by the company include:.Micro Switches,Air Pressure Switches,Mechanical Keyboard Switches,Door Switches ect.Unionwell has a strong global presence, with sales branches and distribution networks spanning across North America, Europe, Asia, the Middle East, and South America.
