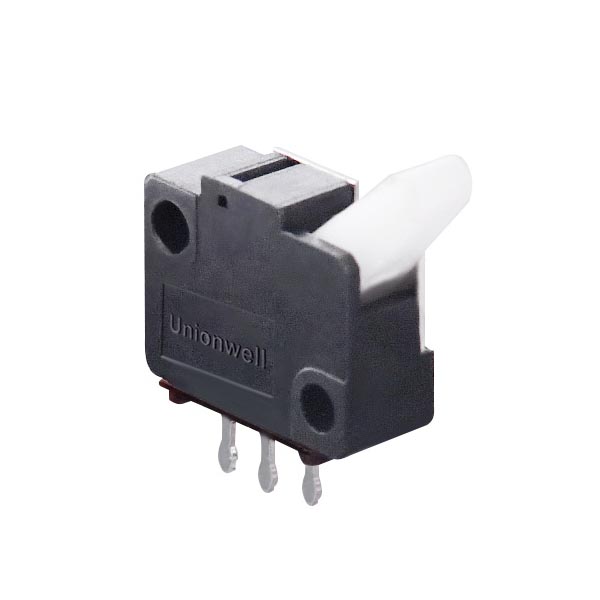

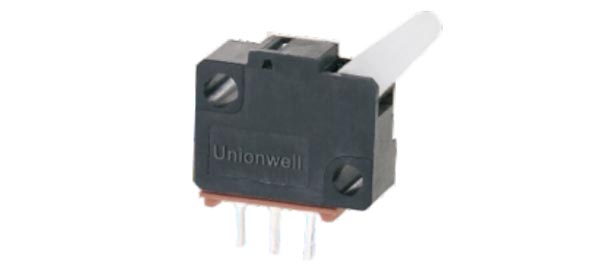

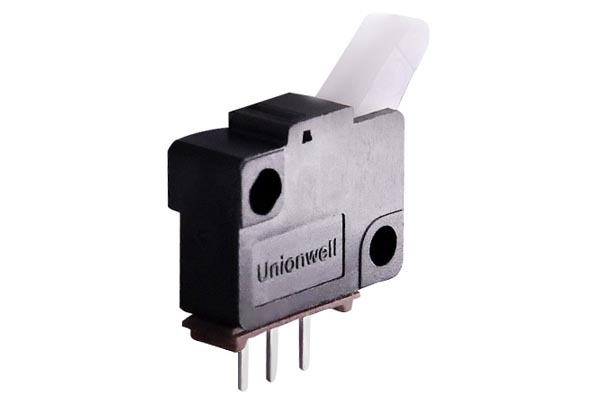

Detector Switch GT01
Features
The Small Size Detector Switch GT01 boasts features such as compact size, lightweight design, and high precision, making it ideal for space-constrained applications. With its long lifespan and minimal operating force, it offers reliable performance over extended periods. The GT01 detector switch ensures accurate detection with minimal effort, enhancing user experience and system efficiency. Renowned for its durability and precision, it provides dependable sensing solutions in various industries.
description2
Parameters
| Electrical Characteristics | Rating | 0.1A 12VDC/50μA 3VDC |
| Contact Resistance(Initial Value) | 100mΩ Max. | |
| Insulation Resistence | 50MΩ Min. | |
| Voltage Proof | AC 50V(50-60Hz)1 Min | |
| Eletrical Life | 10,000 cycles/min | |
| Mechanical/Reliability Characteristlee |
Operating Force | See Detailed Spec |
| Mechanical Life | 100,000 cycles(Min） | |
| Operating Temperature | -25℃~+80℃ | |
| Operating Humidity | ≤85%RH | |
| Solderabllity | 245℃±5℃ 3s±0.5s | |
| Soldering Heat Resistance | 260℃±5℃ 3s±1s |
description2
Application
The Small Size Detector Switch GT01 finds extensive applications in automotive, motorcycles, remote control devices, industrial machinery, telecommunication equipment, navigation systems, and car audio systems. In automobiles and motorcycles, it facilitates various functions such as seat positioning and door sensing. In remote control devices and telecommunication equipment, it enables precise control and operation. Additionally, in industrial machinery and navigation systems, it offers accurate sensing and detection capabilities. Renowned for its versatility, the GT01 switch enhances functionality and performance across a wide range of applications, ensuring reliability and efficiency.
description2
Dimensions
GT01I100CEU
description2
