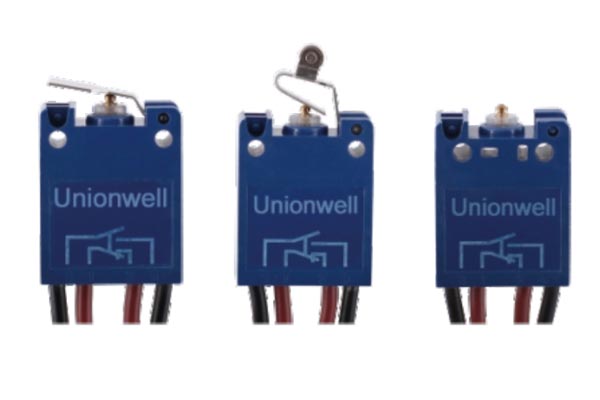

DPDT Micro Limit Switch
Features
description2
Parameters
| Rating | 05 | 0.5A 250VDC |
| 0.5A/5A 250VAC | ||
| Operating Frequency | Electrical | 10~30 cycles/min |
| Mechanical | 10~30 cycles/min | |
| Contact Resistance(Initial Value) | 30~100mΩ Max (Depends on P/N,wire resistance excluded) |
|
| Insulation Resistance (at 500 VDC) | 100MΩ Min | |
| Dielectric Strength | AC750VRMS(50-60Hz) | |
| Operating Temperature | -25℃~+85℃ | |
| Operating Humidity | 85%RH Max | |
| Service Life | Electrical | 50,000 cycles(Depends on P/N) |
| Mechanical | 2,000,000 cycles | |
| Unit Net Weight | Approx.110g (8 Wires) | |
description2
Application
DPDT limit micro switches are loved by many industries for their excellent performance and are widely used in automotive production lines, valve control, industrial automation control and other equipment. With a DPDT double breakpoint structure, it has more complete functionality than the SPDT micro switch, and the IP67 waterproof and dustproof performance can effectively cope with dusty and humid working environments.Click to view more durable automotive limit switches
description2
Dimensions
G11
description2
Who is Unionwell
Huizhou Unionwell Company is a factory focusing on the research and development and manufacturing of micro switches. As a SRDI (specialization, refinement, differentiation, innovation) "high-tech" enterprise, Unionwell is committed to the research and development, production and sales of various high-quality electronic components. Obtained safety certifications from various countries, such as ISO9001, IATF16949, RoHS, and multiple technical patents. Introduced the industry's advanced MES production management system. With world-renowned automobile OEMs and automotive parts suppliers, well-known home appliance brands, we have rich cooperation experience!
