UnionwellMicro Switch for EV Charging Solutions

Unionwell has developed the G3, G9B, and G23 series of waterproof microswitches specifically for electric vehicle charging systems. These switches are designed to meet the needs of the electric vehicle market and comply with international market testing and certification standards. Unionwell has many years of project experience in charging gun control systems and charging pile applications.

Explore Our EV Charging Solutions

A video will give you a comprehensive understanding of Unionwell's manufacturing capabilities and years of OEM experience.

UNIONWELL

Reliable Micro Switches for EV Charging Stations

Addressing the stringent safety and durability requirements of electric vehicle charging stations, Unionwell Micro Switches feature an IP67 waterproof rating, enabling stable operation in complex outdoor environments such as humid and dusty conditions.

For example, the subminiature micro switch operates within a temperature range of -40°C to +85°C and a maximum operating humidity of 85%RH, adapting to harsh climatic conditions. It also boasts an insulation resistance of ≥100MΩ (500VDC), ensuring electrical safety and stability. With an electrical life of 10,000 cycles and a mechanical life of up to 1,000,000 cycles, it is widely used in charging gun connection detection and safety interlock systems, making it a reliable core component in EV charging systems.

Why Choose Our Microswitches for Electric Vehicle Charging?Learn About Unionwell Electric Vehicle Charging Switches!

Our micro switches are specifically designed for electric vehicle charging applications and are specially treated in the following aspects:

Durability： High-strength structural design and high-quality housing, suitable for high-frequency use.
Accuracy: Contacts use gold and silver metals, providing strong conductivity and more stable response.
Sealed Protection: Sealed design meets IP67 waterproof rating testing, providing waterproof and dustproof protection.
Extra-Long Lifespan: Rigorously tested for lifespan, capable of withstanding hundreds of thousands of mechanical operations, meeting long-term operational needs.

Applications of Microswitches in
Electric Vehicle Charging

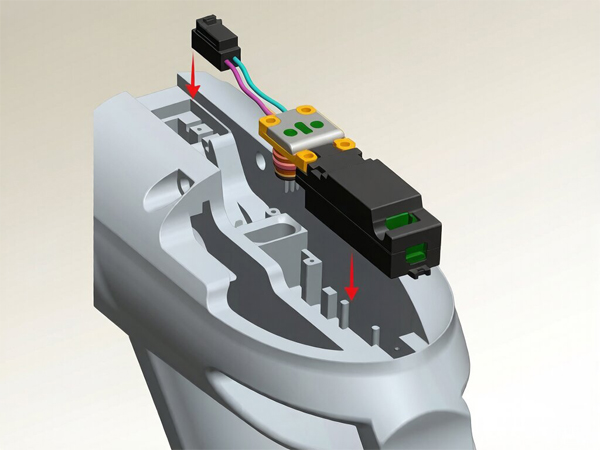

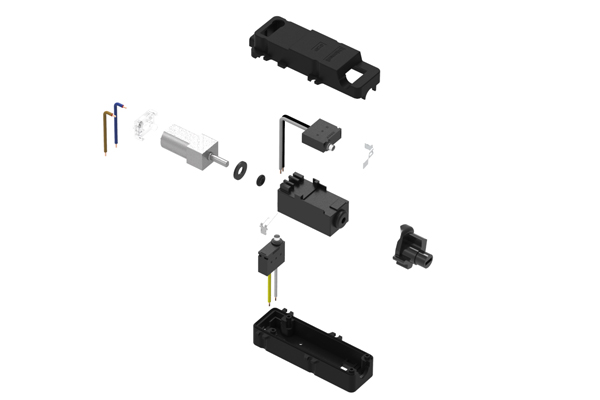

In new energy vehicle charging gun systems, the G23 motor electronic lock switch is integrated into the charging gun control structure, participating in the entire charging safety closed loop. Its specific application process is as follows:

1. Insertion Detection: When the charging plug is inserted, the G23 micro switch quickly responds to displacement changes and sends an insertion signal back to the control system.

2. Signal Trigger: After receiving the switch signal, the control board drives the motor electronic lock to activate, entering a locking preparation state.

3. Mechanical Locking: After the electronic lock completes its action, the micro switch synchronously confirms the locking position, ensuring the plug is reliably fixed.

4. Safe Charging: After the locking state is confirmed, the system allows power to be supplied. The micro switch continuously provides status monitoring to ensure stable charging.

5. Unlocking and Release: After charging is completed, the lock is released via a control signal, and the micro switch sends an unlocking status feedback, allowing the plug to be safely removed.

Micro Switch Applications for Electric Vehicle Charging

Customized Micro Switches for Electric Vehicle Charging

We offer a variety of customization options to meet your specific new energy project application needs:

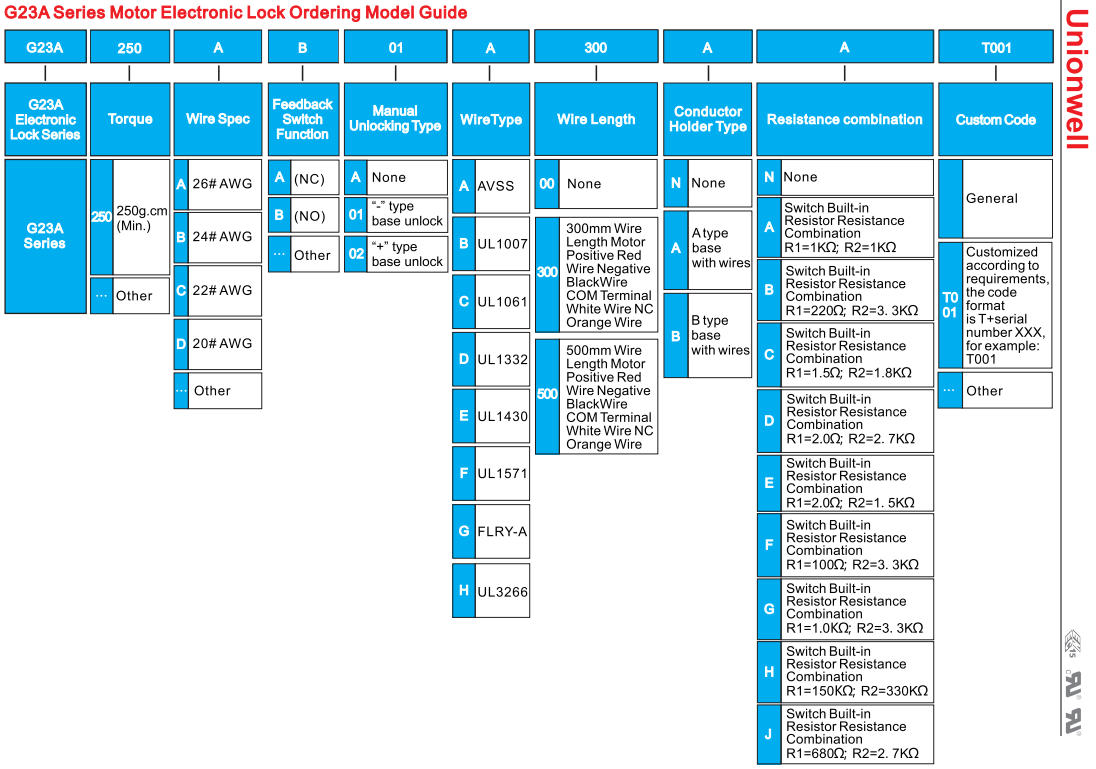

G23A charging gun switch ordering model guide

Below, using the Unionwell G23 customized charging gun application switch as an example, we will explain how to choose the right micro switch for your car charging gun:

Housing Material: High-sealing engineering plastics are selected based on the different operating environments.

Actuator: Commonly used types include long levers, roller levers, pin levers, and push levers.

Sealing Performance: High-sealing waterproof ratings such as IP65, IP67, and IP68 are available to suit your needs.

Electrical Specifications: Tailored to the specific voltage, current, and operating conditions of electric vehicle charging.

Terminal Type: We offer various terminal types, including PCB, soldered terminals, and wiring terminals. Choose the appropriate terminal type according to your requirements.

Consult for a Customization Quote

Why Choose Us for Your EV Charging Micro Switch Needs

Whether it's small-batch pilot production or large-scale manufacturing, a professional microswitch manufacturer is the biggest advantage in ensuring stable project production!

Global OEM Experience:

Unionwell has partnered with numerous charging gun manufacturers worldwide, possessing extensive OEM manufacturing experience.
Advanced Manufacturing Processes:

80% automated production in our facilities, achieving an annual output of 300 million units with a low defect rate.
Engineering Support:

A professional engineering team of 30+ experienced engineers participates in the design, development, and optimization of your microswitch solutions.
Timely Delivery:

Daily production reaches millions of units, with stable shipping partners ensuring rapid production and reliable delivery.

Get a Quote for Your Micro Switch Project

Consult a professional micro switch manufacturer

Consult a professional micro switch manufacturer for expert guidance, rapid product matching, and reliable solutions tailored to your application needs.

Request a Quote Fill in your request

FAQ

What voltage ranges do your electric vehicle charging microswitches support?

Our microswitches are designed to handle a wide voltage range, typically 12V to 480V, to support both AC and DC electric vehicle charging applications. We can also provide customized voltage ranges to meet your project requirements.

Are your electric vehicle charging micro switches waterproof and dustproof?

Yes, our microswitches have an IP67 protection rating, making them completely waterproof and dustproof. This ensures reliable operation outdoors and in harsh weather conditions and effectively prevents corrosion from water, dust, and environmental pollutants.

How to choose a micro switch suitable for the electronic lock of a charging gun?

Focus on the protection rating (IP67), mechanical life, and triggering accuracy to ensure long-term stable outdoor operation and reliable safety interlocking.

How fast can you deliver samples and bulk orders?

Sample delivery is usually fast, typically within one week, for easy evaluation; bulk order delivery cycles are controlled through stable production capacity and supply chain planning.

Does it support customization to adapt to different charging gun structures?

Customization of actuator structure, terminal type, and installation size is supported to meet the design differences of different brands of charging guns.
