What Is The Internal Structure Of a Waterproof Micro Switch?

Waterproof micro switches are used in many fields, including automobiles, home appliances, and industrial equipment. However, few people pay attention to the reason why waterproof micro switches are waterproof. Because waterproof micro switches are sealed at the factory, it is impossible to remove the outer shell to observe the internal structure. This article will provide you with an in-depth dissection of the waterproof micro switch and explore its internal structure!

What Is a Waterproof Micro Switch?

A waterproof micro switch is a small, sensitive, waterproof, and dustproof micro switch. It relies on a slight mechanical trigger to quickly switch circuits, making it widely used in scenarios requiring high-frequency operation and safety protection. Unlike ordinary micro switches, waterproof micro switches incorporate a sealing process into their design, ensuring long-term reliable operation in humid, oily, and outdoor environments.

In other words, a waterproof micro switch is more than just an ordinary circuit switch; it is a highly sealed micro switch designed for demanding operating environments.

Why Understand The Internal Structure Of a Waterproof Micro Switch?

For manufacturers and buyers, understanding the internal structure of a waterproof micro switch is valuable in several ways:

First, it assists with model selection. Different contact materials, actuator types, and terminal designs determine the suitability of a switch for a specific application. For example, silver alloy contacts may be required for high current loads, while gold-plated contacts may be needed to reduce contact resistance in low-voltage signaling applications.

Second, the internal structure determines the protection capabilities. Waterproofing is not a general concept; it is achieved through the comprehensive design of the housing seal, insulation layer, and conductive terminals. Understanding these design differences helps customers determine whether the product truly meets the requirements of their operating environment.

Third, a thorough understanding of the structure can help users reduce maintenance costs. Understanding the functions of contacts, springs, and actuators helps identify potential wear points in advance, thereby avoiding downtime caused by component failure.

Finally, for companies requiring customized solutions, understanding the structural principles of waterproof micro switches provides a valuable reference during the design phase, ensuring the final product achieves both performance and cost-effectiveness.

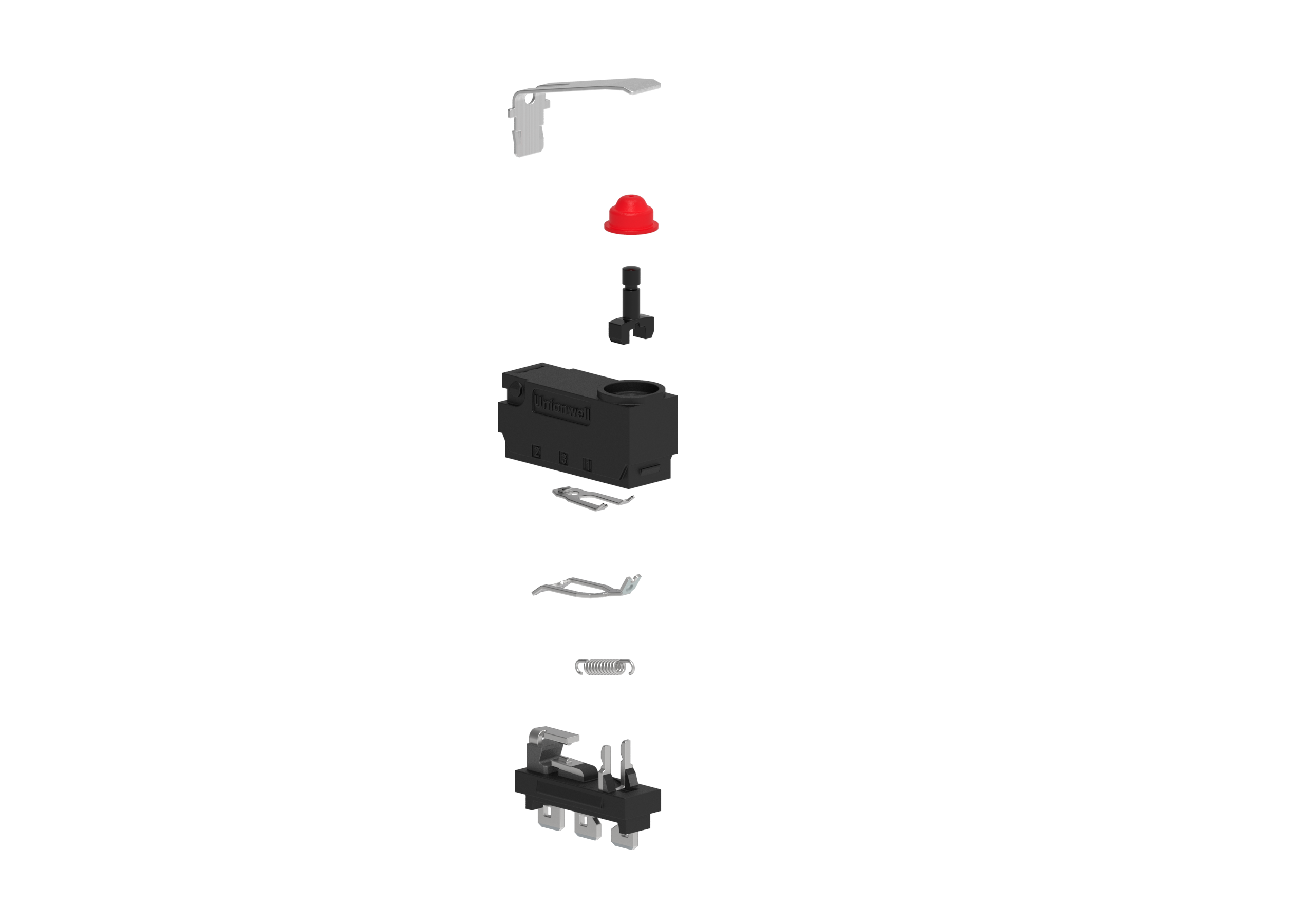

Analysis Of The Internal Structure Of a Waterproof Micro Switch

Housing and Sealing Layer

The first line of defense for a waterproof micro switch is its housing. This housing is typically made of high-strength plastic (such as PBT, PA66) or metal, providing both mechanical shock resistance and long-term stability. Inside the housing, silicone rings, O-rings, or potting compounds are often added for sealing.

• Silicone rings: Soft and resistant to high and low temperatures, they effectively fill gaps and prevent liquid intrusion.
• Potting: Epoxy resin or silicone is used to completely encapsulate the internal components, ensuring that moisture cannot reach the electrical components.
• Housing Design: Snap-fit, ultrasonic welding, or screw fastening is used to further enhance structural strength and sealing.

This multi-layered protection makes the waterproof micro switch easily resistant to environments such as high humidity, oily contaminants, and outdoor rain.

Contact System

The contact is the heart of the micro switch. Waterproof micro switch contacts are typically made of silver alloy for its excellent conductivity and corrosion resistance. If higher signal stability is required, gold-plated contacts may be used to reduce contact resistance and oxidation.

Basic contact types include:

• Normally Open (NO): Open by default, closes when an external force is applied, and is commonly used for detection and triggering functions.
• Normally Closed (NC): Closed by default, opens when triggered, and is commonly used in safety protection and alarm circuits.
• Changeover (SPDT): A single common terminal can switch between normally open and normally closed. This is the most common circuit type.

Springs

Springs are critical components for ensuring both agility and longevity. They achieve "quick-opening" through precise mechanical design. When an external force acts on the actuator, the springs instantly release energy, rapidly opening and closing the contacts and avoiding arcing caused by slow contact.

To enhance durability, springs within waterproof micro switches are typically made of high-carbon steel, stainless steel, or nickel-plated alloys. These materials offer excellent elastic recovery and fatigue resistance, ensuring stability over millions of cycles.

Actuator

The actuator is the direct interface between the user and the waterproof micro switch. Depending on the application requirements, actuators come in a variety of forms:

• Button type: The most common, suitable for direct press triggering, with sensitive and precise action.
• Roller type: Triggered by the contact or sliding of a mechanical object, the roller reduces friction and increases service life.
• Lever type: A lever structure amplifies the travel, accommodating large trigger distances or angle changes.
• Short lever roller type: Combining the advantages of a roller and a lever, it offers a short trigger stroke and high sensitivity.
• Long lever spring type: Features a longer trigger stroke and flexible response, enabling stable triggering over a wide range of displacements.

Actuator design not only influences the operating feel but also directly determines the switch's actuation force and response accuracy. For automotive electronics or home appliance controls, actuators that are both sensitive and have a certain degree of damping are often required to prevent false triggering.

Conductive Terminals

Conductive terminals are responsible for transmitting contact signals to external circuits. Depending on the installation and usage scenario, common terminal types include:

• Plug-in terminals: Simple structure, quick plug-in/plug-out, and replacement, facilitating maintenance and mass assembly.
• Solder terminals: Securely bond to the conductor through soldering, offering excellent stability and vibration resistance.
• PCB-mount terminals: Directly soldered to the circuit board, enabling compact layout and mass production, making them suitable for compact electronic devices.

Working Principle Of The Waterproof Micro Switch Internal Structure

When an external force acts on the actuator, the force is transmitted to the spring system via a lever or roller. Once the spring reaches a critical point, it rapidly releases energy, causing the contacts to "jump" and switch. This instantaneous action prevents prolonged arcing and protects the contacts from burnout. Furthermore, the housing and seal ensure that the entire switching process is protected from dust and moisture.

The entire process can be summarized as follows:

1. External force: The button or lever is pressed;
2. Mechanical transmission: The actuator transmits the force to the spring;
3. Contact switching: The spring instantly releases energy, switching the contacts open and close;
4. Reset: When the external force is removed, the spring returns to its original position, returning the contacts to their initial state.

This structure not only achieves efficient and reliable circuit switching, but also ensures long-term waterproof and dustproof stability.

Conclusion

Analyzing the internal structure reveals that the reliability of waterproof micro switches is no accident; it's the result of a comprehensive range of engineering expertise, including housing sealing, contact materials, spring design, actuator geometry, and terminal processing. These details ensure precise and stable operation even in harsh environments.
