UnionwellSealed Micro Switches Supplier – Tailored for Diverse Industries

Unionwell's sealed switch series is a highly sealed waterproof and dustproof switch with IP67 switch function. Therefore, it is widely used in dusty or humid working environments, such as car doors, hood locks, electric toothbrushes, ice makers, sweeping robots, etc. In order to facilitate selection for different application fields, we kindly recommend various models for you below, including sealed subminiature switch, Hermetically Sealed Switch, Sealed Push Button Switch, etc.
In addition, in order to meet the needs of special applications, we provide customized mass production of sealed switches. You can choose the appropriate lever type, terminal type, operating force, etc. according to your project requirements. We can also provide you with free samples for testing. Unionwell can provide you with all the micro switches you want.

CONTACT US
A video gives you a comprehensive understanding of Unionwell Sealed Micro Switch, helping you choose a more suitable model.
UNIONWELL

Durable and Reliable Sealed Micro Switches

Our Sealed Micro Switch range offers a variety of series, including the G3, G5W11, and G9, each designed to meet the rigorous demands of industrial and commercial applications. The G3 Series stands out with a dielectric strength of 500VAC and an IP67 rating, ensuring both water and dust resistance. These compact switches are globally approved for safety, feature high reliability, and offer multiple lever and wiring terminal options, making them ideal for automotive electronics and industrial controls.

The G5W11 Series is engineered for extreme conditions, operating effectively in temperatures ranging from -40°C to +85°C and humidity up to 85%RH. These switches boast a maximum current rating of 10A under ENEC/UL standards and are widely used in automotive, agricultural, and home appliance applications. The G9 Series excels in high-temperature environments up to 120°C, offering robust dielectric strength and compact design.

Durable Sealed Rotary Switch with Custom Options

●It uses highly protective materials, has certain corrosion resistance, and meets IP67 dust and water resistance.
●There are many product categories, and each field has targeted product types
●The operating levers are diversified, including long levers, roller levers, sliding levers, etc.
●High durability, long service life, generally up to 500,000 times, and a service life of 7 to 8 years.
●Customizable purchase, customized production can be carried out according to your project needs, and free sample testing is provided.
sealed microswitch

Parameter

Operating Frequency Electrical 0.1A,120 cycles/min 3A,10~30 cycles/min
Mechanical 120 cycles/min
Contact Resistance (Initiative) 100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC) 100MΩ Min.
Vbration Durability 10~55Hz,move 0.75mm(p-p)
Dielectric Strength 500VAC(50~60Hz)
Operating Temperature -40℃~+85℃
Operating Humidity 85%RH Max
Service Life Electrical Min.100,000 cycles (Depend on part NO.)
Mechanical Min.500,000 cycles

Products

  • FD-615MT Specs.pdf

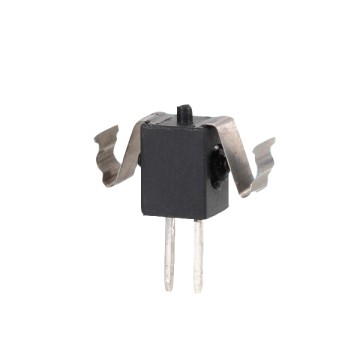

    Linked Sealed Tact Switch - G1&G17 Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Rotary Switch - G2 Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Subminiature Micro Switch - G303 Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Subminiature Micro Switch - G303AB Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G304A Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G304B Series PDF

    Download

  • FD-6100 Specs.pdf

    Slide Structure Sealed Subminiature Micro Switch - G304D Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G304E Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G304F Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G304G Series PDF

    Download

  • FD-6100 Specs.pdf

    Waterproof Subminiature Micro Switch - G305 Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G306 Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Dual Loop Subminiature Micro Switch - G307A Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Triple Loop Subminiature Micro Switch - G307B Series PDF

    Download

  • FD-6100 Specs.pdf

    Sealed Clip Type Subminiature Micro Switch - G309 Series PDF

    Download

  • FDM-615PTM Specs.pdf

    Sealed Basic Micro Switch - G5W11 Series PDF

    Download

  • FDM-6600 Specs.pdf

    Sealed Mini Micro Switch - G9 Series PDF

    Download

  • FDM-6680 Specs.pdf

    Sealed Miniature Micro Switch - G9AB Series PDF

    Download

  • FIM-1440 Specs.pdf

    Subminiature Micro Switch- G10 Series PDF

    Download

  • FIM-2405 Specs.pdf

    Subminiature Micro Switch - G10A Series PDF

    Download

  • FIM-2410 Specs.pdf

    Seal Type Subminiature Micro Switch - G10B Series PDF

    Download

  • FIM-2430 Specs.pdf

    Mounting Hole Waterproof Subminiature Micro Switch - G10B Series PDF

    Download

  • FIM-2450 Specs.pdf

    Waterproof and Dustproof DPDT Limit Micro Switch - G11 Series PDF

    Download

  • FIP-2405 Specs.pdf

    Waterproof Swing Rotary Switch - G16 Series PDF

    Download

  • FIP-2405 Specs.pdf

    Waterproof Seat Adjustment Switch - G19 Series PDF

    Download

  • FIP-2405 Specs.pdf

    Motor Electronic Lock for Charging - G23A Series PDF

    Download

  • FIP-2405 Specs.pdf

    Motor Electronic Lock for Charging - G23B Series PDF

    Download

  • FIP-2405 Specs.pdf

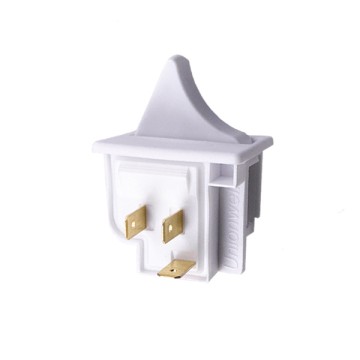

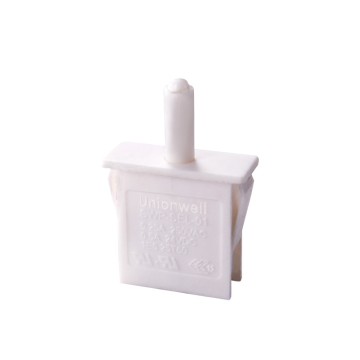

    ATEX Explosion Proof Refrigerator Door Switch - SWD Series PDF

    Download

Commitment To Exceptional
Innovation & Quality

sealed micro switches supplier

Sealed Micro Switch Feature

Sealing

Our sealed micro switches use advanced sealing technology and meet IP67 protection performance, which is higher than the common IP40, IP65 and other sealing performance. It can effectively prevent water and dust from entering the switch, and it can work stably for more than half an hour even if it is completely immersed in water.

High Temperature Resistance

Excellent temperature resistance is a prerequisite for the stable operation of the switch. Unionwell's sealed micro switches have undergone rigorous temperature resistance tests to ensure stable operation in the range of -40°C~+85°C. They can easily cope with the high temperature working environment of automobile engines and industrial equipment.

Multiple Voltage Specifications

It has multiple rated voltage specifications, such as 250VAC/15A, 125VAC/5A and other rated voltage specifications to choose from, suitable for high-load equipment applications.

Durability

High sealing often leads to high durability. The electrical life of this type of micro switch can reach 100,000 times, the mechanical life can reach 500,000 times, the service life can reach 7 to 8 years, and it has a strict test report.

Multiple Lever Types

A variety of lever types are available, including basic levers, long levers, roller levers, sliding levers, and even custom levers. This ensures that you can choose the right micro switch lever type for your project needs.
sealed micro switches business premises

Advantages Of Unionwell Sealed Switches

We have reduced production costs through years of research, innovative technology and the introduction of advanced production equipment, aiming to provide you with low-priced and high-quality sealed micro switches.

Compact Size

Compared with ordinary micro switches, it has a smaller size and the overall length is less than the width of a thumb, which makes it easier to install in small devices.

Easy To Install

The circuit connection is sealed inside the opening, the bottom is sealed with glue filling technology, and it is connected with a variety of terminals, which is more convenient to install directly into the application.

Lower Production Costs

Unionwell is located in Huizhou, China, with cheap raw materials, and the sealing technology and materials are provided by directly controlled subsidiaries. This means that we can provide the world's leading sealed switches at a lower price, achieving true value for money.
sealed micro switch workshop

Application Of Sealed Micro Switches

The excellent performance of sealed switches makes them widely used in automobiles, home appliances, electronic consumer products, industrial equipment and other fields.

Automotive

Sealed switches are key components of automobile detection systems. For example, G3 ultra-small micro switches and G9sealed mini micro switches are often used in automobile door lock systems to achieve position detection functions. Another example is the G19 waterproof sealed seat switch used in automobile adjustment systems to provide passengers with more precise seat adjustment functions.

Household Appliances

There are also many sealed switches hidden in household appliances, such as the G5W11 waterproof and dustproof micro switch, which is mostly used in ice makers, sweeping robots and other systems. It provides steering control detection in sweeping robots. Another example is the SWD refrigerator door switch, which is more common and is located inside the refrigerator. When the refrigerator door is closed, the switch is pressed to disconnect the circuit and turn off the refrigerator light. In addition, there are more common types of door micro switches, such as Whirlpool microwave door switches.

Consumer Electronics

The small size of sealed micro switches allows them to be installed in small devices such as mobile phones, walkie-talkies and toys. G9A waterproof miniature micro switches and G10 subminiature are often used in walkie-talkie control systems. Another common example is the keyboard switch we use every day, which is actually a type of micro switch. Unionwell has recently launched a new Tesla magnetic axis keyboard switch, which is a testimony to our technological innovation.

Industrial Equipment

Industrial equipment is often in a harsh working environment with heavy humidity, so the application of sealed switches is essential. The G11 DPDT dustproof limit switch is an ideal choice for industrial equipment control switches. Another example is the G12 basic limit switch, which some customers have integrated into the control operating system of a tower crane. Each operating lever uses 4 of these roller-type limit switches, corresponding to the four directions of front, back, left, and right.

Your Trusted Partner for Advanced Sealed Micro Switch Solutions

At Unionwell, we are committed to providing top-quality solutions with our Sealed Micro Switches. As a leading sealed micro switch supplier, we collaborate closely with our clients to deliver high-performance, reliable, and durable switches tailored for various applications, such as automotive, home appliances, communication devices, and industrial control. Our hermetically sealed micro switches are designed to withstand extreme conditions, ensuring superior operational efficiency and reliability. Choose Unionwell as your partner for innovative, high-quality solutions that meet and exceed your needs.

Sealed Micro Switch Buying Guide

Unionwell’s sealed micro switches come in various specifications and models, ensuring that customers can find the perfect match for their specific application requirements. As a leading micro switch manufacturer, whether you need switches for automotive, industrial, or consumer electronics applications, Unionwell has you covered. This guide will help you navigate the buying process for Unionwell’s sealed micro switches.

  • First determine the type, specification and quantity of micro switches you need to purchase.
  • Provide us with your detailed requirements, including switch specifications, quantity and delivery time, etc.

If you are not sure which micro switch to buy, you can describe your needs and application scenarios, and our sales staff will provide you with the most suitable suggestions and solutions.

Contact us
sealed switchdoa

FAQ

What is a sealed switch?

A sealed switch is an electrical device enclosed within a protective casing, shielding its internal components from environmental factors such as dust, moisture, and debris. This casing creates a barrier that prevents contaminants from entering the switch mechanism, ensuring its reliability and longevity. Sealed switches are commonly used in various industries and applications where exposure to harsh conditions is prevalent, such as automotive, industrial, and outdoor settings.

What wires are usually used for Unionwell sealed switch G303?

The most commonly used wire gauge is UL1007.

What operating forces can the G5W11 sealed switch have?

The main operating forces of the G5W11 sealed switch are 15 grams, 25 grams, 50 grams, 100 grams and 200 grams, of which 15 grams and 25 grams are only suitable for small currents of 0.1A.

Why is the maximum current of our G9 series sealed switch 6A IP67, while our G91 series can reach 10A IP40? Can the G9 current reach 10A IP67?

G91 Is not sealed, but can reach 10A. G9 miniature micro switch is sealed, but the heat of the current cannot be dissipated, so it is difficult to reach 10A.

What is the main purpose of the G11 sealed switch?

The G11 sealed switch is mainly used on electric valves with explosion-proof requirements.

What are the main applications of the G16 series sealed micro switches?

The G16 sealed micro switches are mainly used in car door locks.
