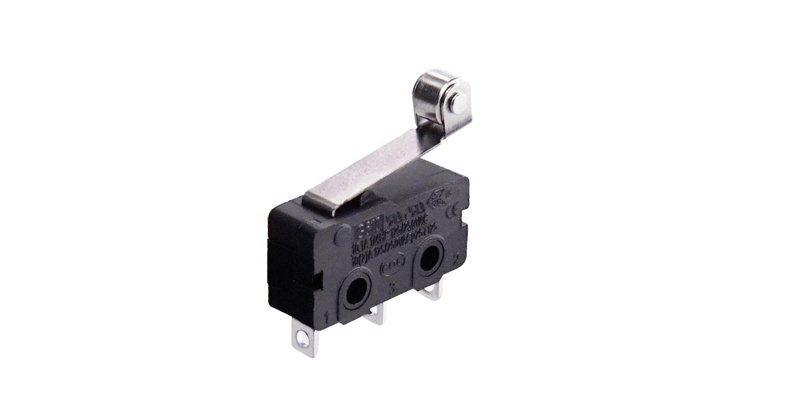

UnionwellRecommended Unionwell SPDT roller lever micro switch

SPDT roller lever micro switch is also called snap action switch. The configuration circuit is single pole double throw. The top lever is a hinge lever with a roller at the end. The roller switch can realize sliding mode switch. The stroke increases with the distance away from the fulcrum, while the load decreases. It is suitable for operating environments with small operating force or large stroke.

Unionwell is a professional SPDT micro switch manufacturer in China. We provide a variety of micro switches to meet your various application needs. Our production adopts high production standards, uses industry-leading automated production equipment and EMS management system to ensure the quality of the switch. This SPDT roller lever micro switch meets UL, cUL, ENEC and CQC certifications, and its materials meet EU environmental protection RoHS certification. Unionwell is well aware of the importance of customization, so we provide professional OEM services and have rich experience in this regard.Click the button below to get a sample test!

Get a Sample

This video shows you the automated production process of Unionwell's G5 series SPDT micro switches

UNIONWELL

SPDT Roller Lever Micro Switch Type

Unionwell's SPDT roller micro switches are available in the following types, each of which is a high-quality switch type that has been improved through years of research and development. Usually the rating of the micro switch is 3A 125VAC/250VAC, 6A 125VAC/250VAC, but the G5 basic micro switch has a 16A high current rated load and can be used in high-power equipment.

Global Safety Approvals Basic Micro Switch G5

G5

Customized Designs Miniature Micro Switch G6

G6

G9

G12

SPDT roller lever micro switch features

●Enhanced reliability: Single-pole double-throw (SPDT) design provides more powerful circuit function switching.

●Durable roller lever: The roller lever design reduces friction and wear while changing the trigger mode, improves operation smoothness, and extends the service life of the switch.

●Multiple specifications available: Supports a variety of current and voltage equipment requirements, with low current 3A and high current 16A options. And there are various terminal types, with quick-connect terminals and wiring terminals available.

●High-precision triggering: After a strict production test process, it can be guaranteed to be accurately triggered with the same force every time.

●Certification: Complies with UL, cUL, ENEC and ISO certifications, and the manufacturing materials comply with EU RoHS certification.

SPDT Roller Lever Micro Switch Specifications

Operating Frequency	Electrical	0.1A,120 cycles/min 3A,10~30 cycles/min
	Mechanical	120 cycles/min
Contact Resistance (Initiative)		100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)		100MΩ Min.
Vbration Durability		10~55Hz,move 0.75mm(p-p)
Dielectric Strength		500VAC(50~60Hz)
Operating Temperature		-40℃~+80℃
Operating Humidity		85%RH Max
Service Life	Electrical	Min.100,000 cycles (Depend on part NO.)
	Mechanical	Min.500,000 cycles

SPDT Roller Lever Micro Switch

SPDT Roller Lever Basic Micro Switch-G5 Series PDF
Download
Miniature Roller Lever Micro Switch - G6 Series PDF
Download
Sealed Mini Roller Micro Switch - G9 Series PDF
Download
SPDT Roller Lever Limit Micro Switch - G12 Series PDF
Download

Unionwell SPDT roller lever Micro Switches Application Case

AGV handling robot

The anti-collision stop device at the front/rear end of the AGV handling robot is generally equipped with two of our G9 series SPDT roller micro switches. When the AGV encounters an obstacle or a person during driving, the external force passes through a series of transmission mechanisms in the anti-collision device and finally triggers the micro switch to generate a signal, transmitting the information of the obstacle or person encountered to the control system. The control system issues a stop command to stop the AGV.

Get a quote for the same model

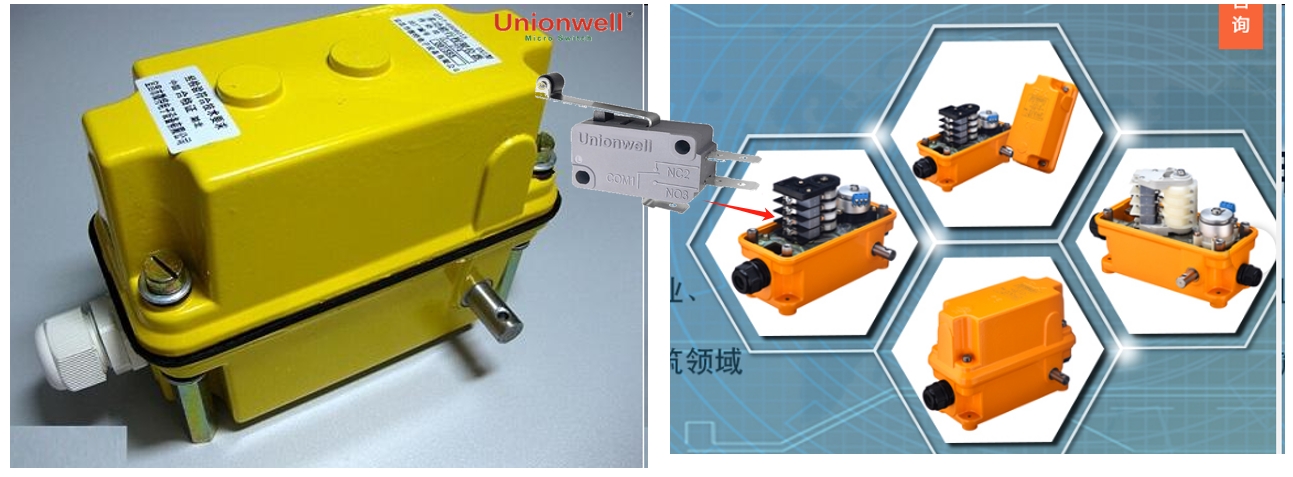

G5-SPDT-roller-lever-micro-switch-in-tower-crane-control-system

Application of multifunctional travel limiter for tower crane

The multifunctional travel limiter of the tower crane is composed of a speed gear, a memory cam and the corresponding G5 series roller micro switch of our company. The displacement signal that can be synchronized with the controlled mechanism is connected to the input shaft of the limiter after the speed change of the external hanging wheel, and is converted into the angular displacement signal of the output shaft through the speed change of the reducer to realize the three-coordinate control and limit protection function.

Get a quote for the same model

SPDT Roller Micro Switch Buying Guide

Unionwell’s SPDT lever micro switches come in various specifications and models, ensuring that customers can find the perfect match for their specific application requirements. As a leading micro switch manufacturer, whether you need switches for automotive, industrial, or consumer electronics applications, Unionwell has you covered. This guide will help you navigate the buying process for Unionwell’s micro switches.

First determine the type, specification and quantity of micro switches you need to purchase.
Provide us with your detailed requirements, including switch specifications, quantity and delivery time, etc.

If you are not sure which micro switch to buy, you can describe your needs and application scenarios, and our sales staff will provide you with the most suitable suggestions and solutions.

Unionwell SPDT Micro Switch Purchase Process

Other Micro Switches You May Be Interested in

Customers who searched for SPDT roller micro switch are also interested in the following switches！

G304/6/9

Sealed Subminiature Micro Switch With Inner Resistor G3

G3

G5

G5W11

FAQ

What is the main function of a SPDT micro switch?

SPDT micro switches are used to switch between two circuits. They have one input and two outputs and are often used in applications where you need to select between two states or paths.

What is the difference between SPDT micro switches and other types of switches?

Compared with SPST (single pole single throw) switches, SPDT switches offer more connection options and can switch between two outputs, but DPDT limit micro switches are recommended for applications with more complex circuits. For details, see the article 《What Is The Difference Between SPDT And DPDT Switch?》

What are the common applications of SPDT micro switches?

SPDT micro switches are widely used in home appliances, LED light control, audio equipment input selection and other fields to achieve function switching or mode selection.

What factors should be considered when selecting an SPDT micro switch?

When selecting, factors such as the switch's rated current and voltage, mechanical life, operating force, mounting method, and compatibility with the application circuit should be considered.

What other types of micro switches are there ?

There are four types of circuit micro switches, with the following characteristics:

SPST (single pole single throw): one input, one output, for simple on/off control.

SPDT (single pole double throw): one input, two outputs, can switch between two circuit paths.

DPST (double pole single throw): two independent inputs, each with a corresponding output, can control two independent circuits at the same time.

DPDT (double pole double throw): two independent inputs, each with two outputs, can switch between two sets of circuit paths.
