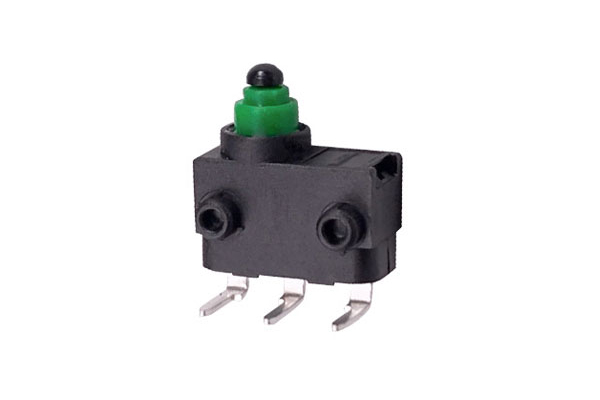

Subminiature Seal Micro Switch G10B

Seal Subminiature Micro Switch G10B is a compact and reliable electronic component designed for precise control in various applications.

Because its sealed design, it offers enhanced protection against dust, moisture, and other environmental factors, ensuring consistent performance even in harsh conditions.If you are interested in this outstanding technology, you may want to learn more about Unionwell's other innovative switch.

The G10B sealed micro switch is known for its durability, versatility and long service life, and is suitable for automotive applications, such as as a waterproof automotive micro switch for automotive detection functions. It is also ideal for charging gun control switches.

Contact Resistance (Initial Value) 100mΩ Max
Operating Temperature -40°C~+85℃
Operating Humidity 85%RH Max.
Insulation Resistance(at 500 DC) 100mΩ Min

product details

product description

Features

Seal Type Subminiature Micro Switch G10B features a robust seal design, ensuring protection against dust, moisture, and contaminants, thus enhancing its durability and reliability in harsh environments. Its compact size makes it suitable for applications with limited space.

The G10B switch features precise actuation and low operating force, ensuring accurate and sensitive switching. With high electrical ratings and long mechanical life, it provides consistent performance over time. If you feel that the G10B is still a gap from your target switch, you may wish to learn about its similar G10 subminiature switch.

The G10B series has a variety of actuator styles and terminal configurations to meet different application requirements. If you want to learn more about the switch, please leave your contact information and cooperate with China's reliable micro switch company to help your project succeed!

description2

Parameters

Rating	P1	0.1A 125/250VAC 30VDC
Rating	03	3A 125/250VAC 30VDC
Operating Frequency	Electrical	10~30 cycles/min
Operating Frequency	Mechanical	120 cycles/min
Contact Resistance (Initial Value)		100mΩ Max.
Insulation Resistance (at 500VDC)		100MΩ Min.
Dielectric Strength	Between teminals	600VAC 50~60Hz for 1 Min
Dielectric Strength	Between terminals and housing	1,000VAC 50~60Hz for 1 Min
Operating Temperature		-40℃~+85℃
Operating Humidity		85%RH Max
Service Life	Electrical	10,000 cycles
Service Life	Mechanical	1,000,000 cycles

description2

Application

The Seal Type Subminiature Micro Switch G10B finds wide applications in automotive, air conditioning, and communication systems. In cars, it controls functions like windows, doors, and lights, ensuring stable and reliable operation. Within air conditioning units, it serves as a switch for temperature control and fan speed adjustment, ensuring system efficiency and comfort. In communication devices, the G10B micro switch regulates power, connectivity status, and signal transmission, ensuring device reliability and stability.

description2

Who is Unionwell

Huizhou Unionwell Sensing & Control Electronics Co., Ltd. is a micro switch factory, specializing in sensing and control core components. Established as an SRDI (Specialized, Refined, Differential, Innovation) "High-New Technology" enterprise, Unionwell is dedicated to research, production, and sales of a wide range of high-quality electronic components.Some of the key products offered by the company include:.Micro Switches,Air Pressure Switches,Mechanical Keyboard Switches,Door Switches ect.Unionwell has a strong global presence, with sales branches and distribution networks spanning across North America, Europe, Asia, the Middle East, and South America.

1993

Years

Ever Since

million

Registered Capital (CNY)

70000

m²

Area Covered

300

million

Annual Capacity (PCS)

description2
